Inspect buried structures
Cross-sections and X-ray views relate temperature to die stacks, TSVs, microbumps and package connections. Contact temperatures reflect the thermal model's resolution and material assumptions.
AMD-inspired accelerator study: workloads, resolution and result views
AbstractEight compute chiplets, two I/O dies and eight 12-high HBM stacks create a demanding test of package-level thermal analysis. This paper studies an AMD MI350-inspired assembly under two 950 W workloads — GPU-intensive and memory-intensive — and compares the same numerical model at 250 µm and 50 µm spatial sampling. In this study the coarser grid, with 25× fewer X-Y sample cells, preserves the package peak to within 0.024 K and the sampled field to within 0.06% of the fine result's peak temperature rise. Interactive 2D/3D result views on the modeled structure are included.

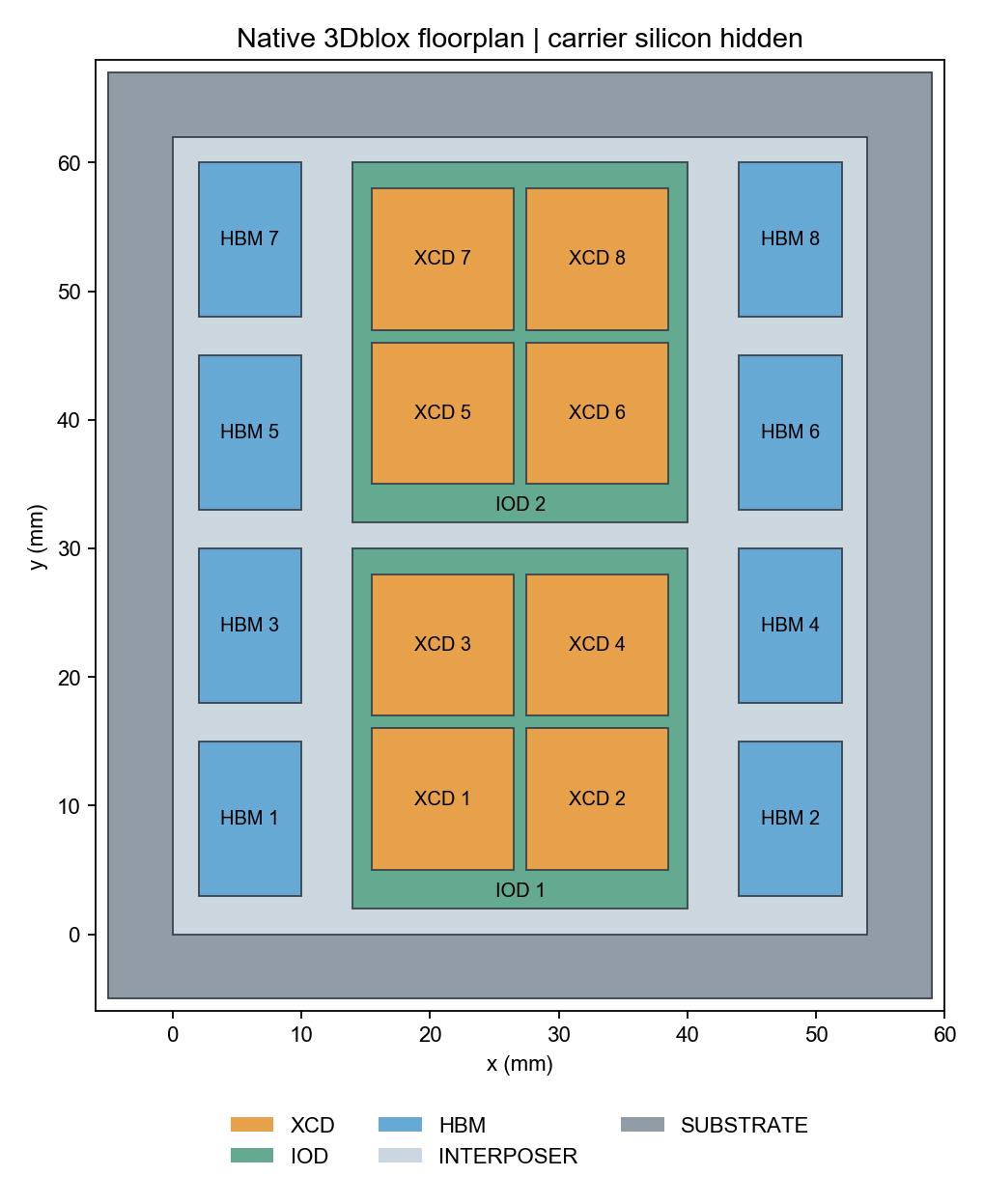

1 / THE MODELED PACKAGE
An MI350-inspired compute + memory assembly
Nonuniform power maps reveal local activity rather than treating every die as an identical uniform heater.

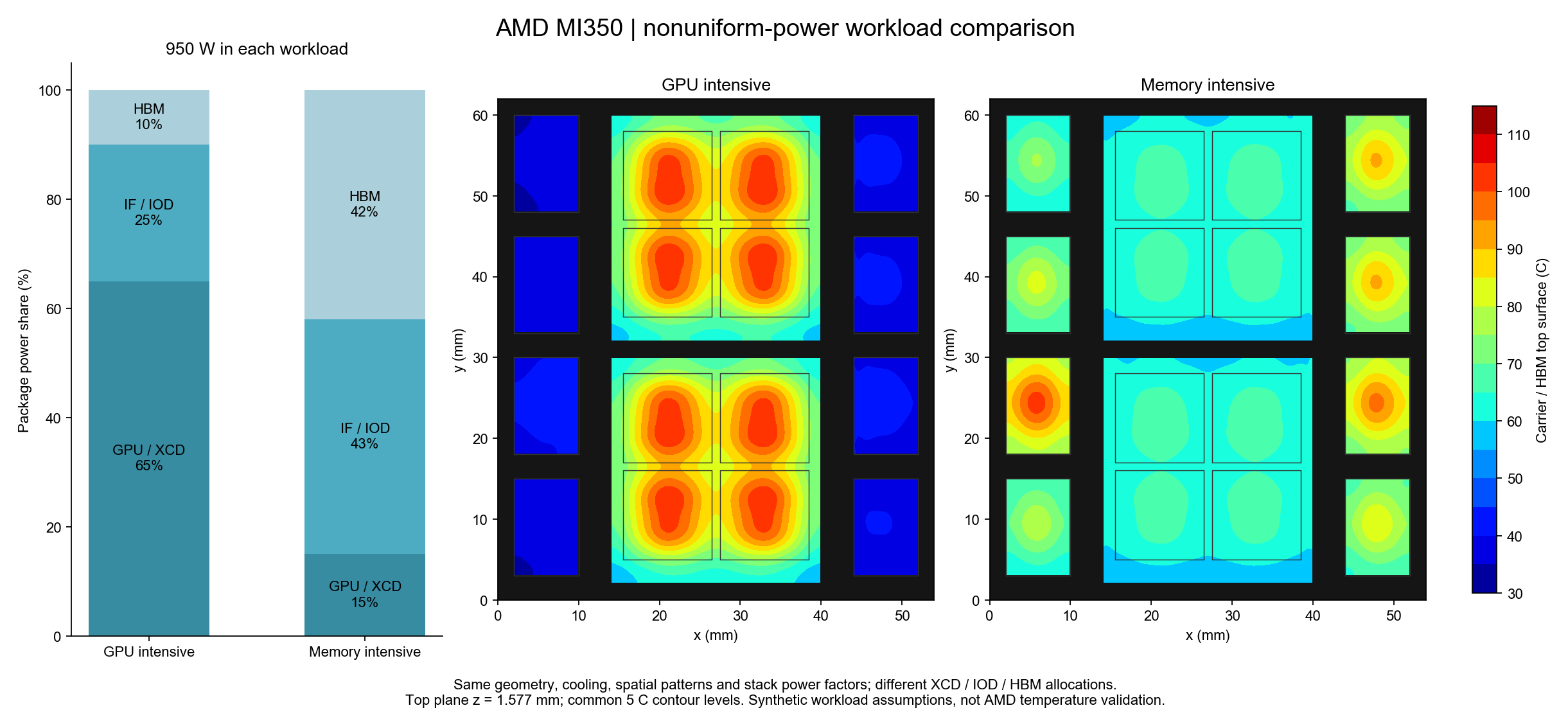

2 / TWO WORKLOADS
Different workloads move the thermal constraint
Two 950 W scenarios emphasize different parts of the assembly: compute in the GPU-intensive case and memory in the memory-intensive case. The thermal constraint moves from the compute chiplets toward memory as the power allocation shifts.

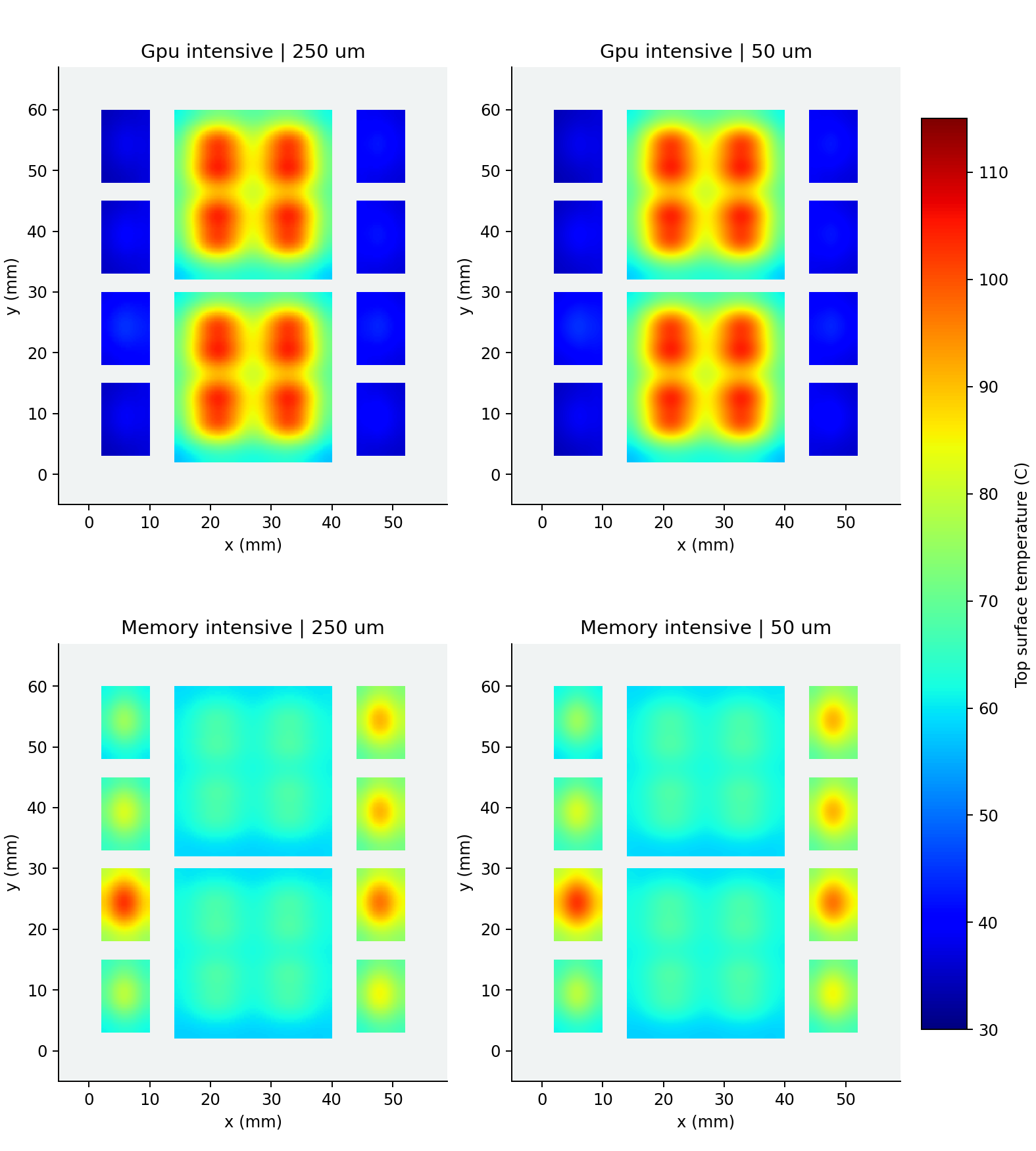

3 / RESOLUTION COMPARISON
250 µm versus 50 µm sampling
The same numerical model was evaluated at both spatial sampling settings, retaining identical solver settings, power budgets and cooling conditions. The coarser X-Y grid contains 25 times fewer sample cells.
<0.06%Worst sampled-field difference relative to the fine result's peak rise
<0.024 KLargest change in package peak temperature across the two workloads
25×Fewer X-Y samples; not a claimed 25× solver speedup
| Workload | Peak change | Worst sampled-field difference | Normalized difference* |
|---|---|---|---|
| GPU intensive | 0.0234 K | 0.0382 K | 0.0443% |
| Memory intensive | 0.0054 K | 0.0441 K | 0.0512% |
*Maximum absolute difference at compared sample locations, divided by the 50 µm result's peak temperature rise above 25 °C ambient. This is not pointwise percentage error or error relative to measured silicon.
Why this matters for exploration
In this study, the coarser model preserves the main thermal patterns and the package peak. That supports a workflow in which broad screening comes first, followed by higher-resolution investigation of selected hotspots and interfaces. It does not establish that every design can use the same coarse spacing.
4 / RESULT VIEWS
See temperature in context
A temperature field becomes more useful when it stays attached to the structure that produced it.

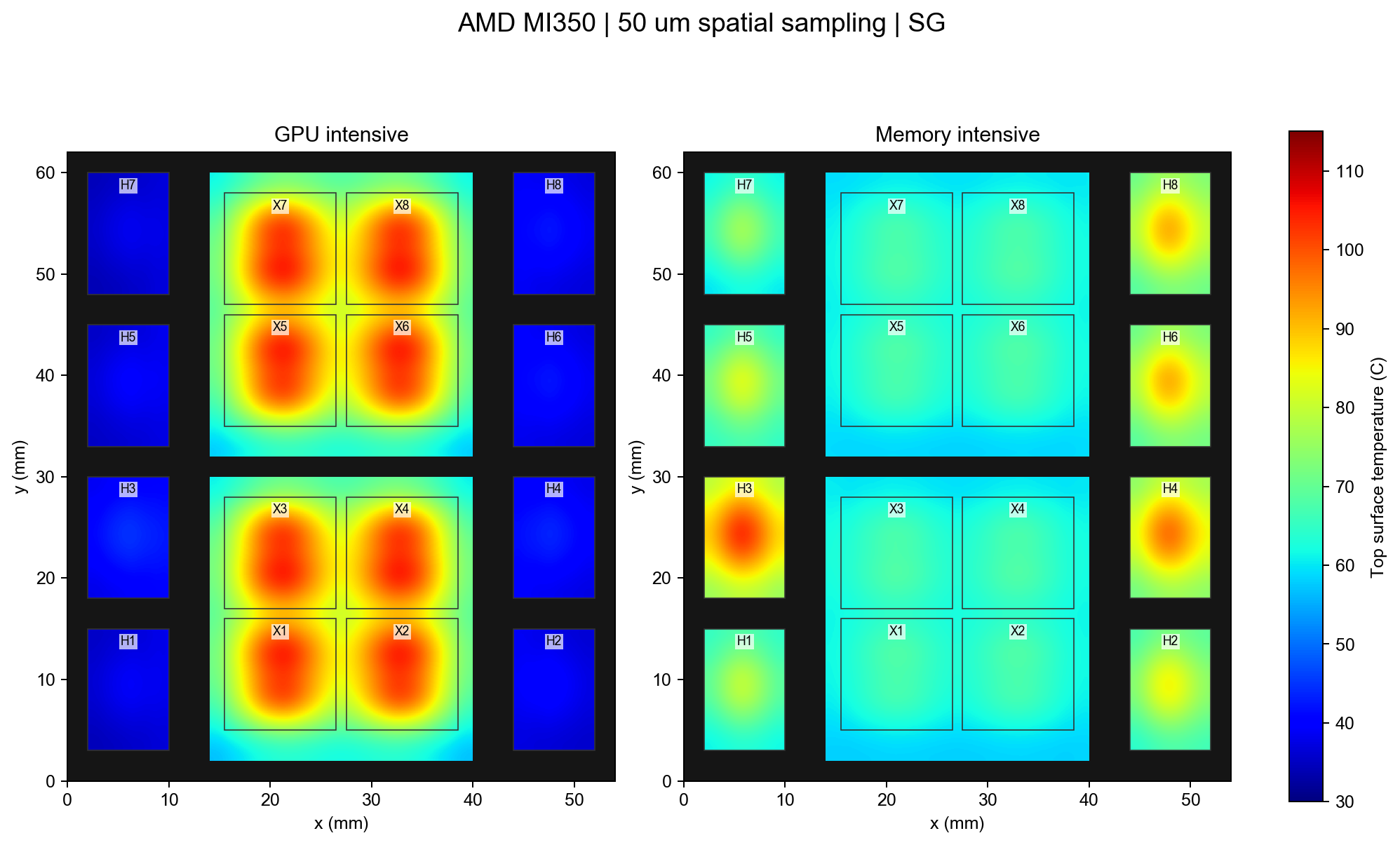

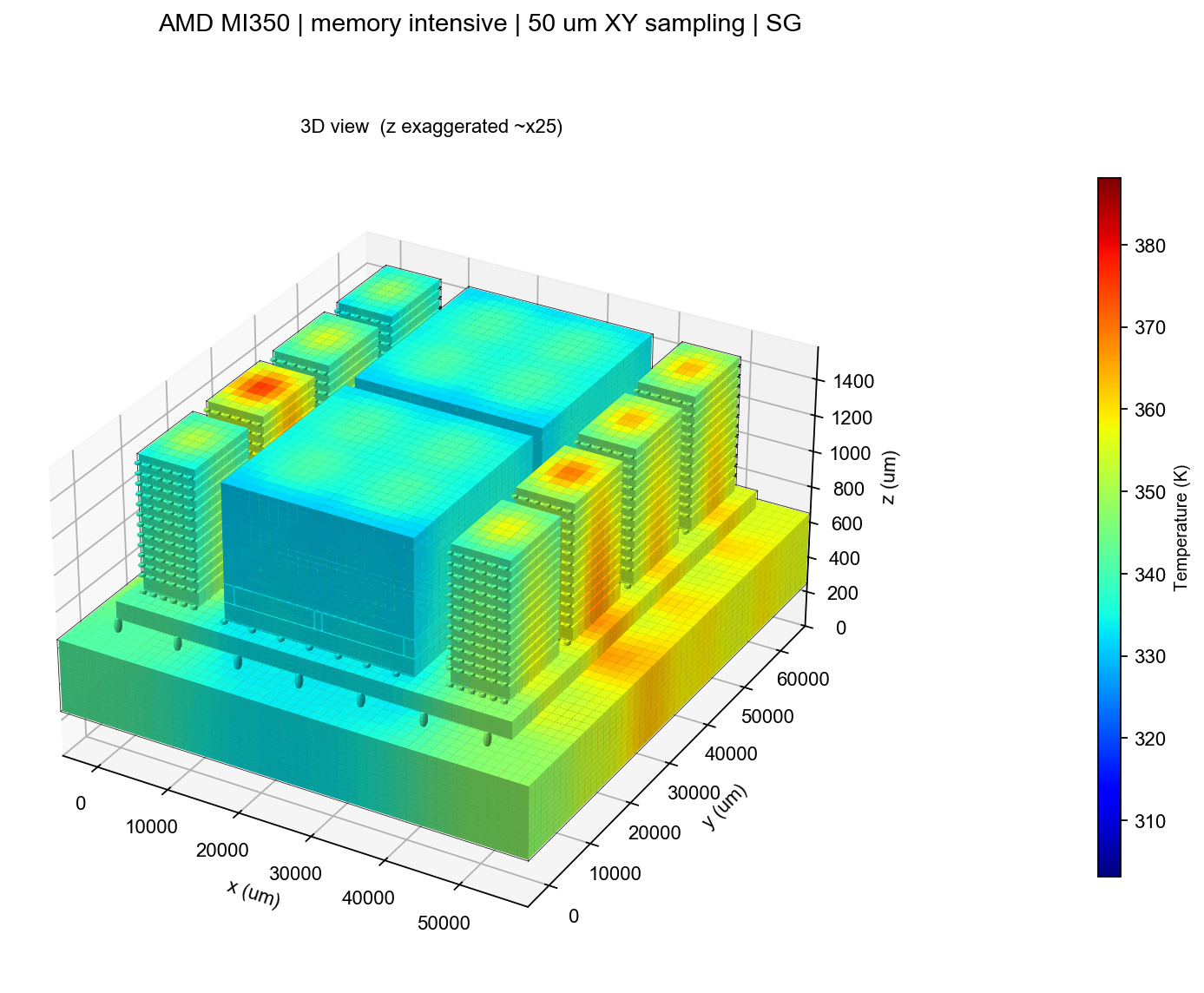

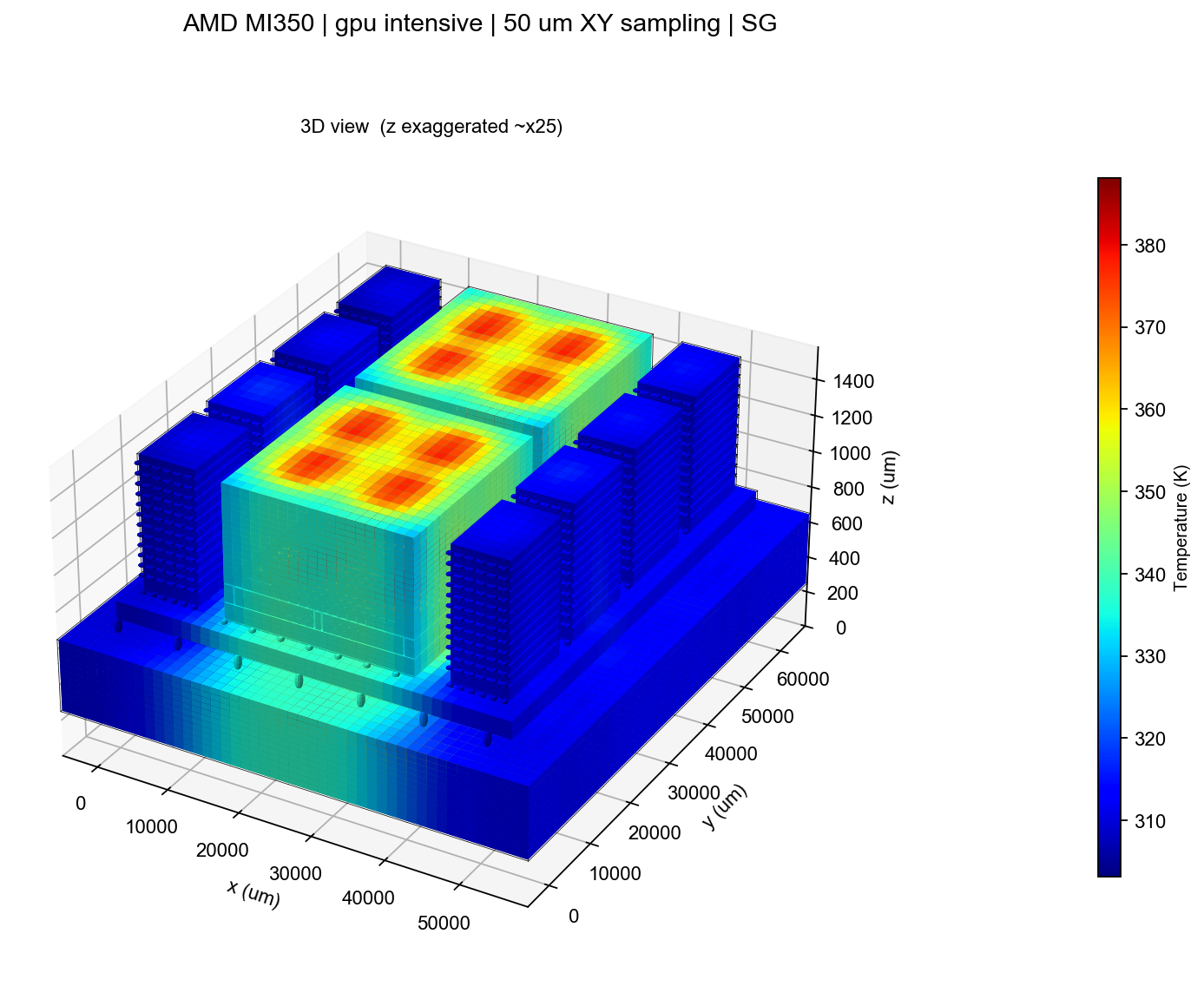

Move between package-level maps, layer inspection and cross-sections to understand where heat is generated, how it spreads, and which structures limit thermal margin. Three-dimensional views expose relationships that a top-only heatmap can hide: the two workloads reach almost the same package peak, 111.25 °C and 111.17 °C, but in different silicon.

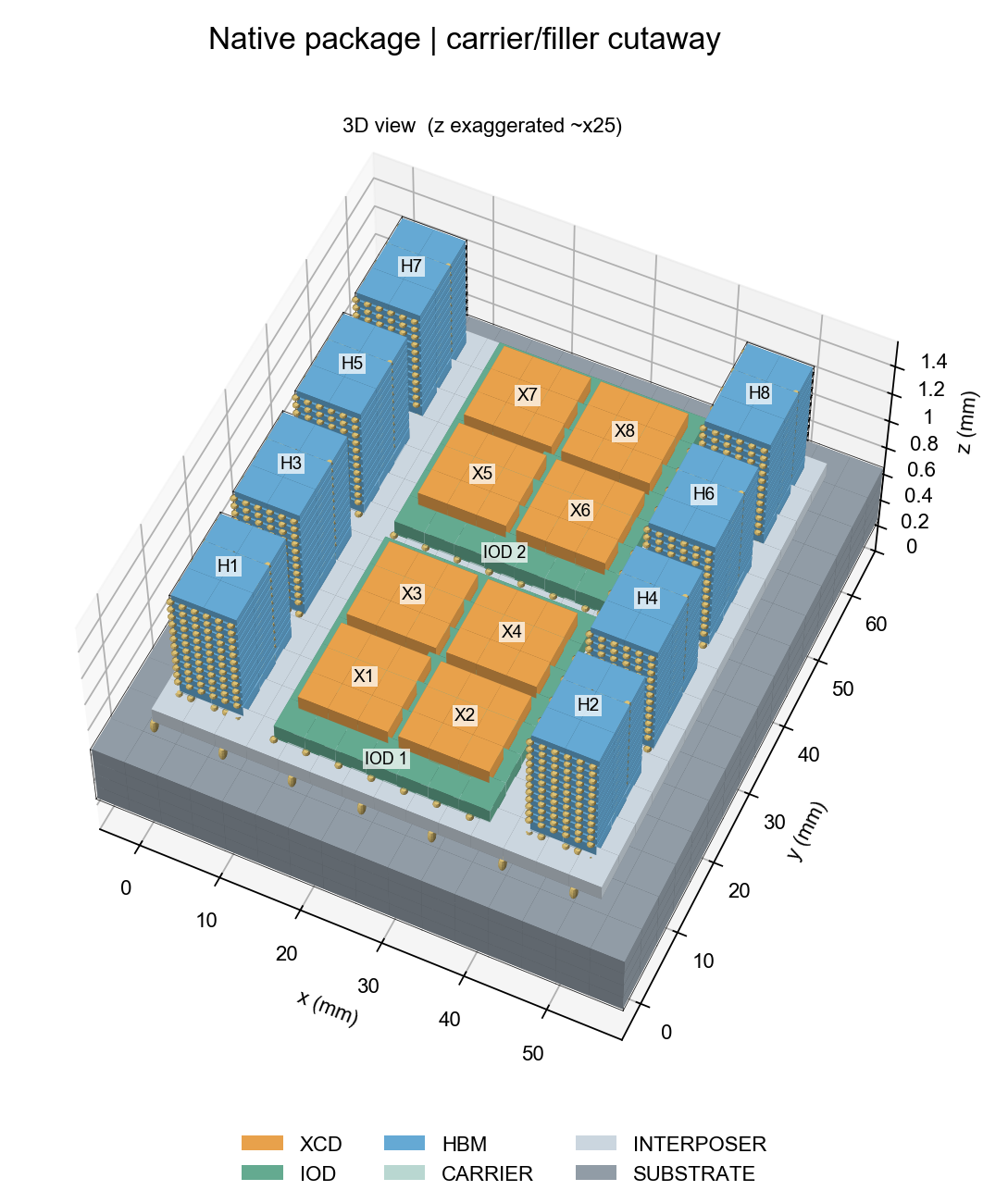

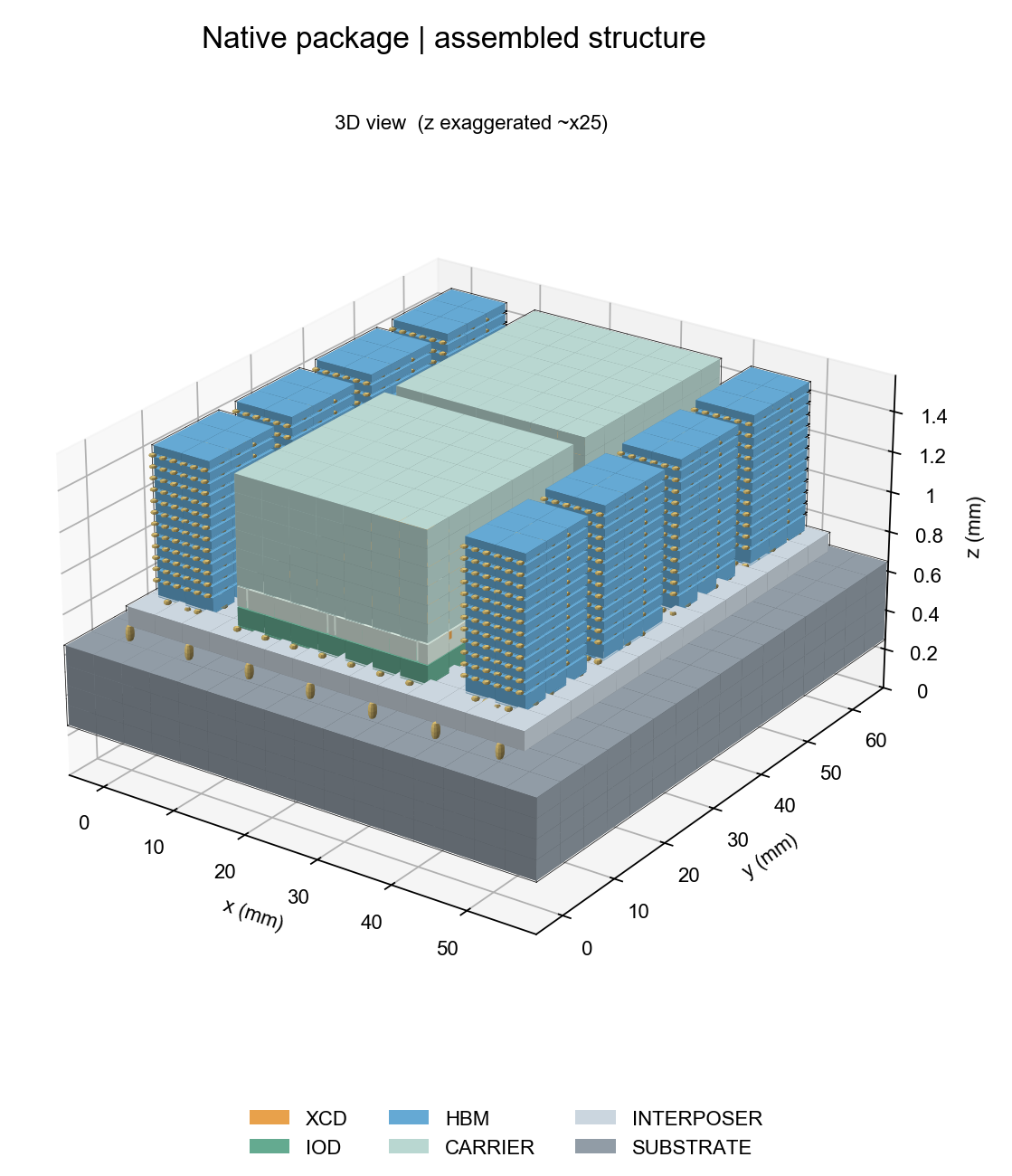

Z is exaggerated about 25× so the thin dies and bond layers stay visible; the compute stacks are not recessed in the real package, they are simply shorter than the HBM towers before the carrier is added. Contact outlines are subsampled for display.
Both views are the 50 µm runs behind section 3, on independent colour scales in kelvin. Height is exaggerated about 25× so the thin layers remain visible.

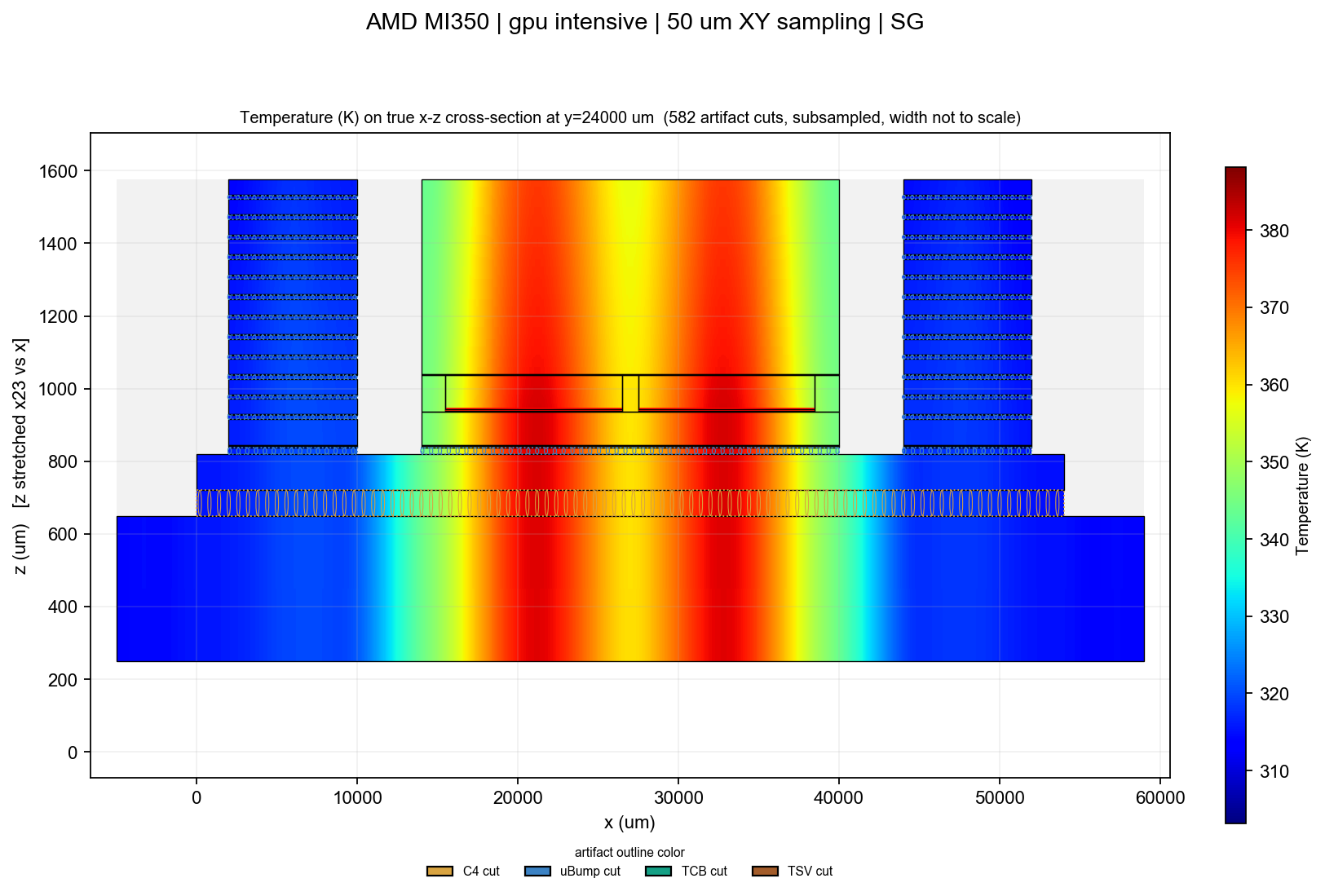

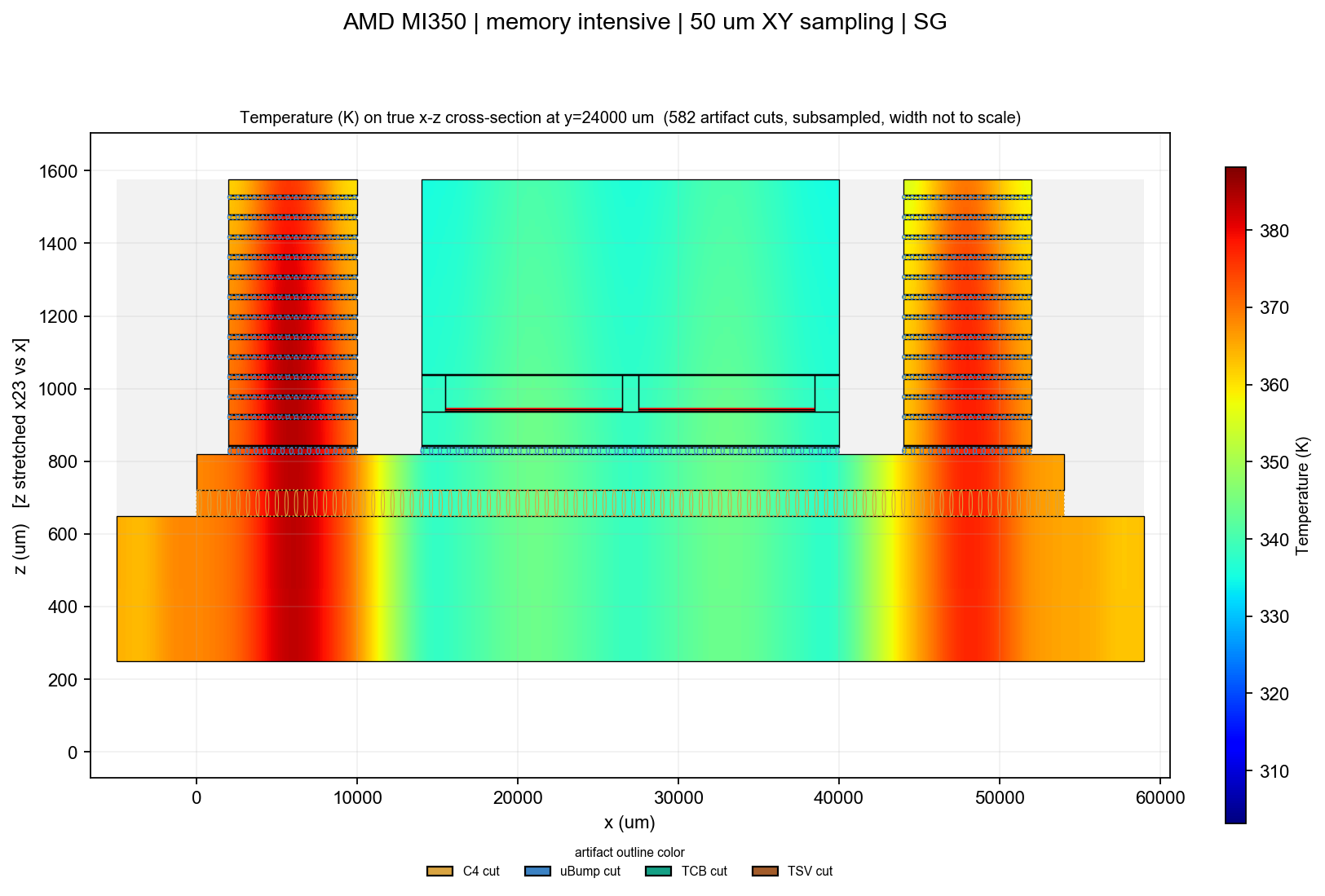

True X-Z section at y = 24 mm, through HBM stack H3 and the compute quads. Z is stretched about 23× against X; C4, µbump, TCB and TSV cut outlines are marked.
Share the engineering picture
Use maps, exported figures and component-level results in design reviews. Keep geometry, workload and cooling context with the thermal conclusion.
5 / SCOPE & INTERPRETATION
What this study does and does not establish
Both runs use ThermStack's fast numerical solver, not a coarse-versus-fine FEM study. Only spatial sampling changes; the solver's representation is held fixed. The comparison uses linear interpolation of the finer result at coarse cell centers, considering finite occupied overlaps. Z sampling is unchanged.
The result demonstrates sampling consistency for these two assumed workloads, not independent FEM validation, proven 50 µm resolving power, or a guaranteed error bound. Thin features and sharply localized sources require their own refinement checks. The AMD reference is qualitative: this study is not endorsed by AMD and is not a measurement of an AMD product.
Source context: AMD Instinct MI350 Series GPUs, ISSCC 2026, session 2.1, and the supplied GPU-intensive / memory-intensive workload illustration. Numerical values are from the ThermStack AMD resolution study.
